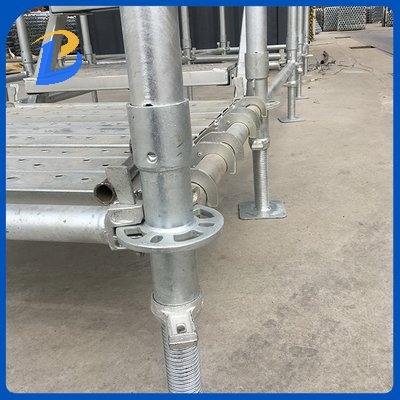

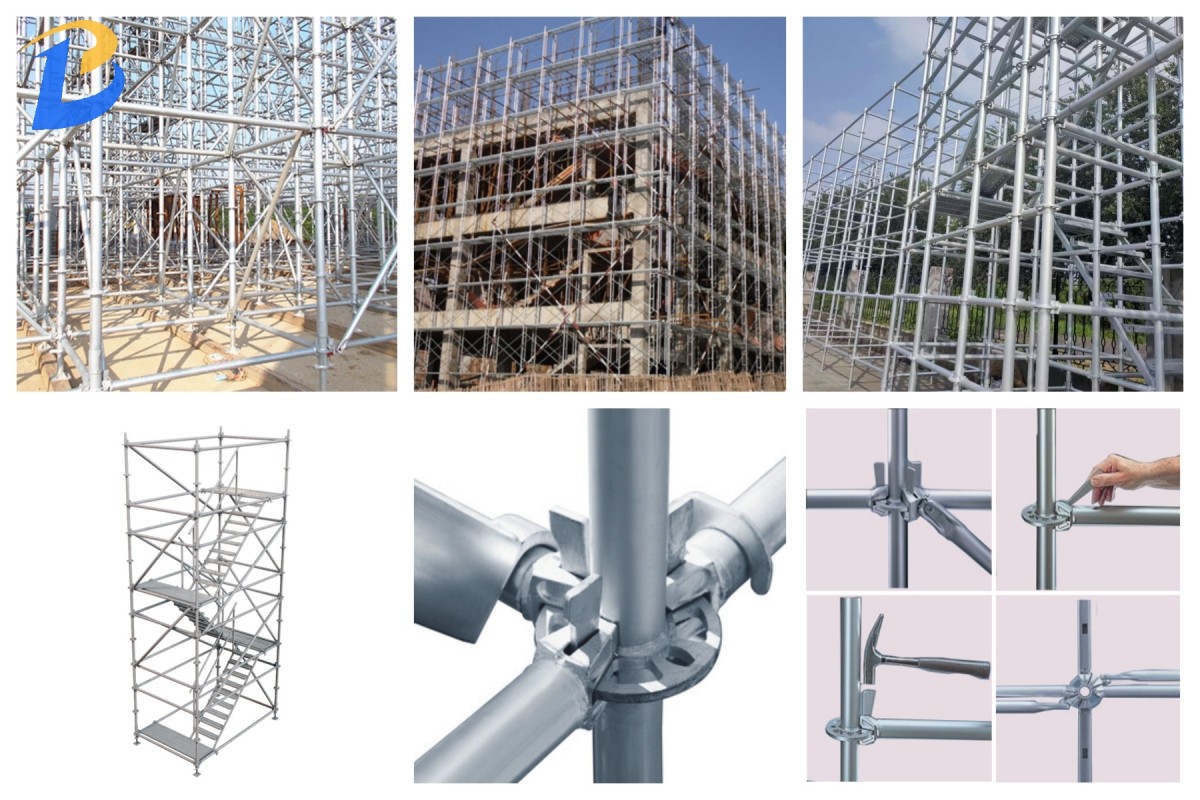

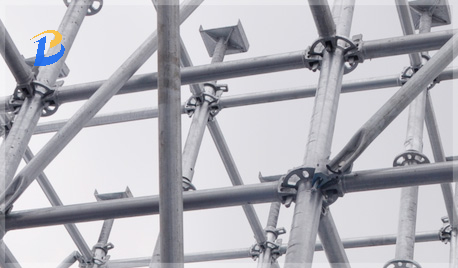

1. Advanced technology

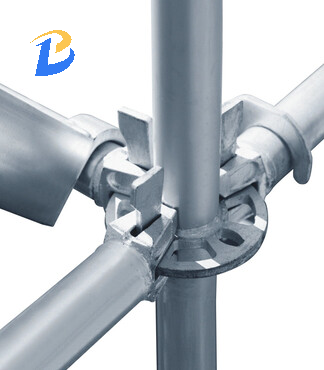

The disc-type connection method is the international mainstream scaffolding connection method. Reasonable node design can

 ensure that the force transmission of each rod passes through the node center. It is mainly used in European and American

countries and regions. It is an upgraded product of scaffolding. The technology is mature and the connection Strong,

structurally stable, safe and reliable.

2. Raw material upgrade

The main materials are all made of low-alloy structural steel (national standard Q345B), which is 1.5-2 times stronger than the

ordinary carbon steel pipe (national standard Q235) of traditional scaffolding.

3. Hot dip galvanizing process

The main components adopt internal and external hot-dip galvanizing anti-corrosion process, which not only increases the

service life of the product, but also provides further guarantee for safety, and at the same time, it is beautiful and beautiful.

4. Reliable quality

This product starts from cutting out materials. The entire product processing goes through 20 processes. Each process is

carried out using professional machines to reduce the intervention of human factors, especially the production of horizontal

 bars and vertical bars. A self-developed fully automatic welding machine is used. The products have high precision, strong

 interchangeability, and stable and reliable quality.

5. Large carrying capacity

Taking the 60 series heavy-duty support frame as an example, the allowable bearing capacity of a single vertical pole with

 a height of 5 meters is 9.5 tons (safety factor is 2), and the damage load reaches 19 tons, which is 2-3 times that of

 traditional products.

6. Less dosage and light weight

Under normal circumstances, the distance between vertical poles is 1.5 meters and 1.8 meters, and the step distance between

horizontal poles is 1.5 meters. The maximum distance can reach 3 meters, and the step distance can reach 2 meters. Therefore,

the dosage under the same support volume will be reduced by 1/2 compared with traditional products, and the weight will be

reduced by 1/2~1/3.

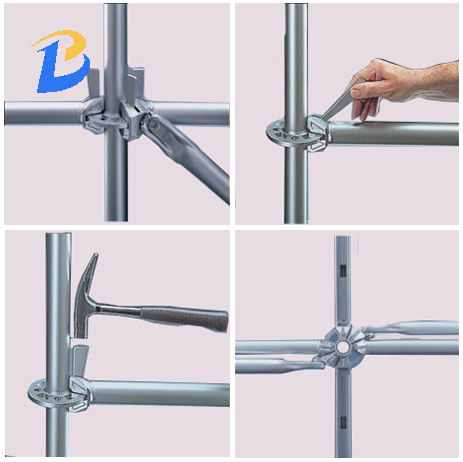

7. Quick to assemble, easy to use, and cost-saving

Due to the small amount and light weight, operators can assemble it more conveniently. The construction and disassembly fees,

 transportation fees, rental fees, and maintenance fees will be saved accordingly, and generally 30% can be saved.
