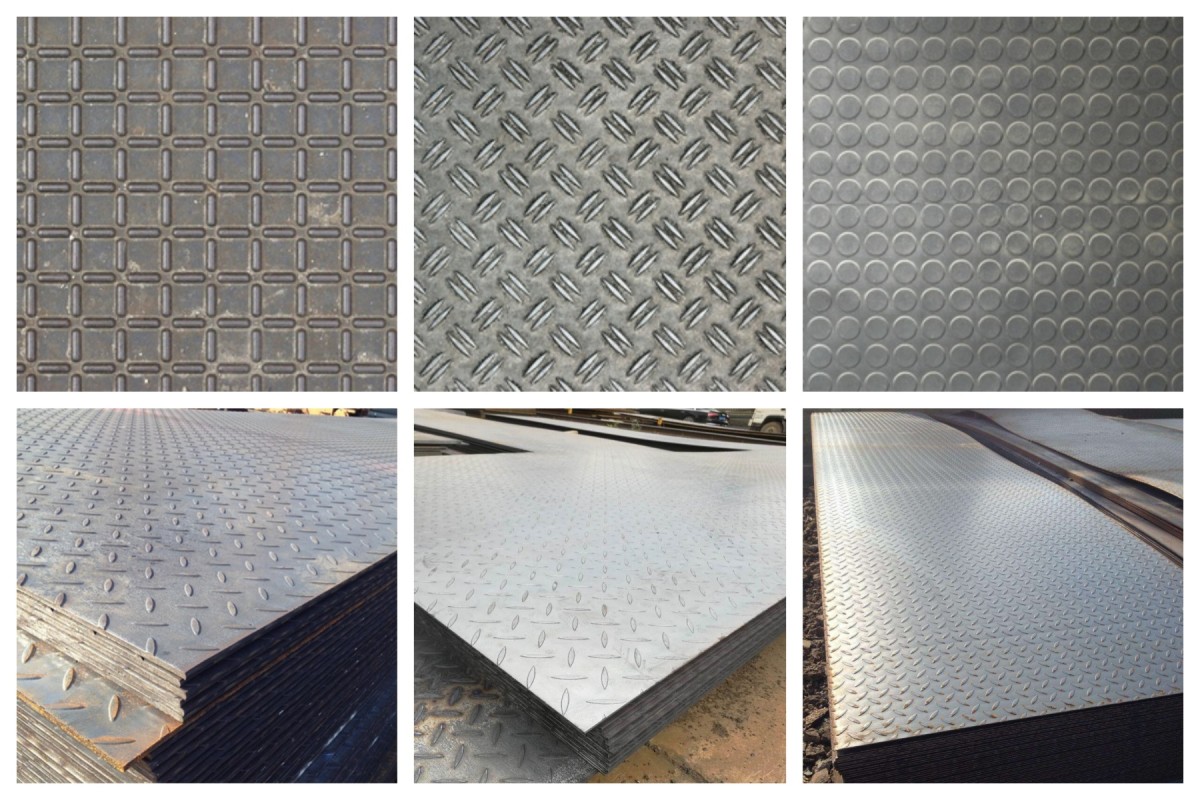

Patterned shape, the surface with patterned steel plate is called patterned plate, English name: diamond plate. its pattern into a lentil-shaped, diamond-shaped, round bean-shaped, flat and round mixed shapes, the market to the lentil-shaped most common.

Patterned plate has many advantages such as beautiful appearance, anti-slip, strengthened performance, saving steel and so on. It is widely used in the fields of transportation, construction, decoration and upholstery, bottom plate around the equipment, machinery, shipbuilding and so on. Generally speaking, the user of the pattern plate mechanical properties, mechanical properties are not high requirements, so the quality of the pattern plate is mainly manifested in the pattern into the flower rate, pattern height, pattern height difference. The commonly used thickness on the market ranges from 2.0-8mm, and the common width is 1250, 1500mm.

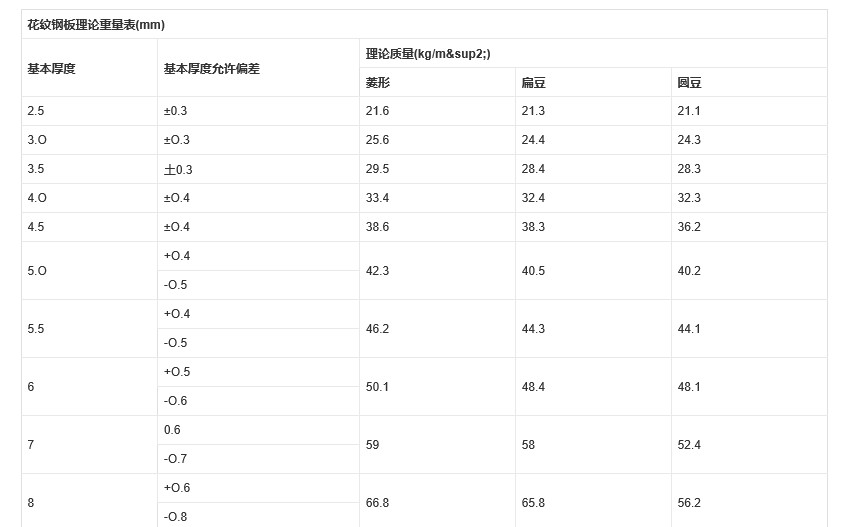

Theoretical weight table of common flower plate

1. The width of steel plate is 600~1800mm, graded by 50mm; the length is 2000~12000mm, graded by 100mm.

2. The pattern pattern height is not less than 0.2 times the thickness of the substrate. The size of the figure is not as a finished product inspection basis.

3. Steel plate with steel grade according to GB/T700, GB/T712, GB/T4171.

4. Mechanical properties of steel plate are not guaranteed, when the demand side has requirements, according to the relevant standards, or by mutual agreement.

5. The steel plate is delivered in hot rolled condition.
